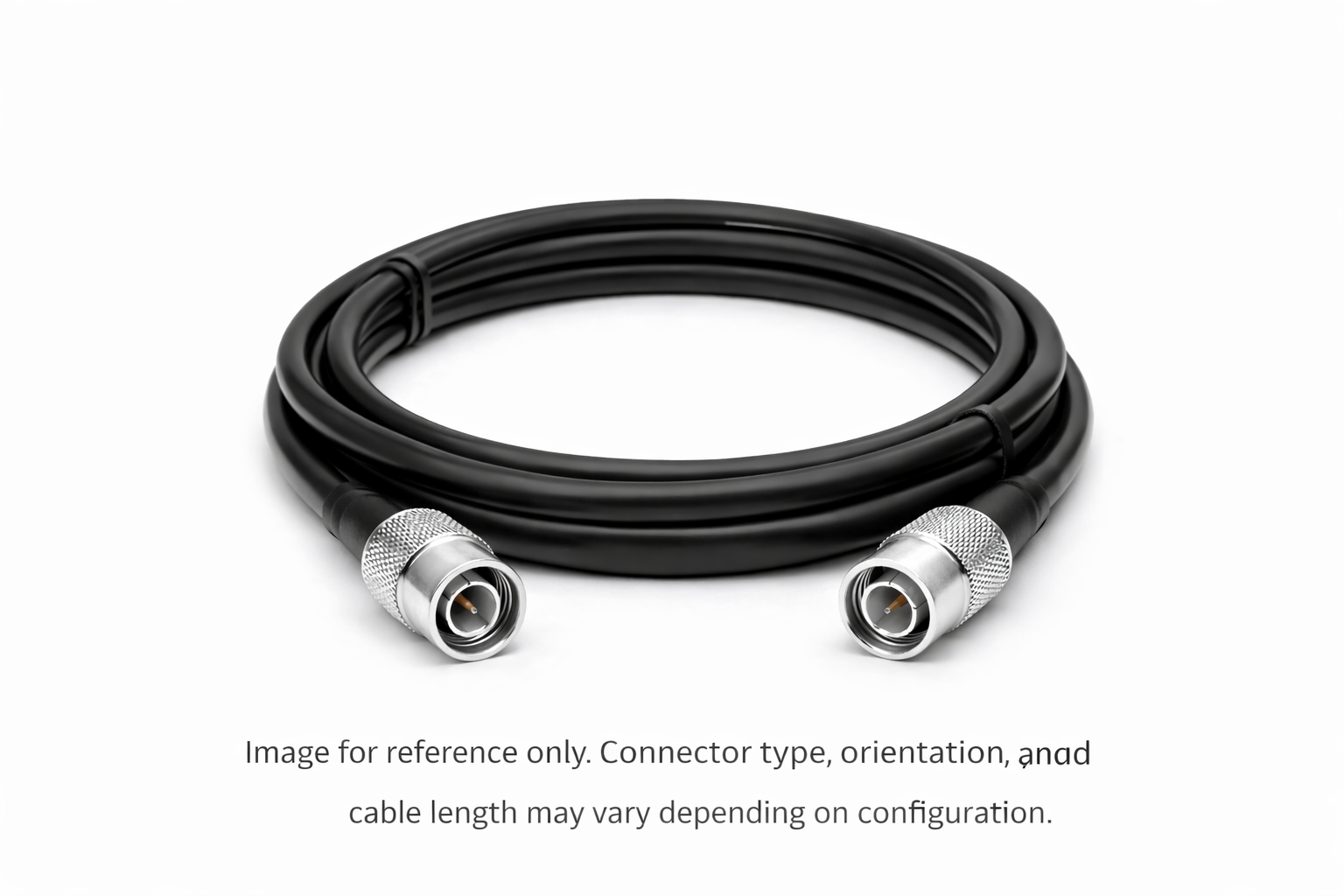

RP-TNC Male → SMA Male 240 Low Loss Coaxial Cable Assembly
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Part Number:
CC240RTMSSM006
Cable Type: 240 Low Loss Coaxial Cable
Connector 1: RP-TNC Male
Connector 2: SMA Male
Length:
6 feet
Quantity
Couldn't load pickup availability
240 Low Loss Coaxial Cable
240 Low Loss Coaxial Cable terminated with RP-TNC Male on one end and SMA Male on the opposite end. Designed for RF, wireless, and industrial applications requiring reliable 50 Ohm performance and low signal attenuation.
Manufactured using 240 Low Loss Coaxial Cable with solid copper center conductor and foil shield with 100% coverage braided shield. Each assembly is professionally terminated, heat-shrink strain relieved at both connector transitions, and continuity tested prior to shipment.
Typical Applications
- RFID systems
- Wireless networking (WLAN)
- Industrial RF equipment
- M2M connectivity
- Antenna-to-reader interconnect
Stock & Lead Time
Select standard lengths stocked for immediate shipment. Non-stock configurations manufactured to order.
Electrical Specifications
| Parameter | Specification |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | DC – 6 GHz (Connector Dependent) |
| Attenuation @ 900 MHz | 6.7 dB / 100 ft |
| Attenuation @ 2.4 GHz | 11.3 dB / 100 ft |
| Attenuation @ 5.8 GHz | 17 dB / 100 ft |
Cable Specifications
| Cable Type | 240 Low Loss Coaxial Cable |
| Outer Diameter | 0.240 in |
| Center Conductor | Solid Copper |
| Shielding | Foil + 100% Coverage Braid |
| Jacket | Black PVC |
Connector Specifications
| Connector 1 | RP-TNC Male |
| Connector 2 | SMA Male |
| Termination | Crimped & Heat Shrink Reinforced |
Mechanical
| Available Lengths | 6 feet, 10 feet, 15 feet, 20 feet, 25 feet, 30 feet, 35 feet |
| Weight (Approx.) | Varies by length |
